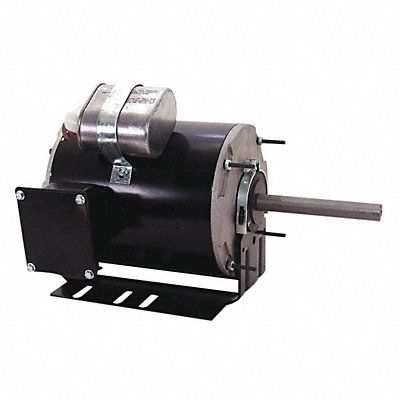

Condenser Fan Motor Single Phase Motor Design Permanent Split Capacitor 3/4 HP Nameplate RPM 1 075 No of Speeds 1 Voltage 208-230/460V AC 5.0/2.5 Full Load Amps 48Y Frame Output Watts 560 W 60 Hz Usable @ 208V Yes Usable @ 200V No Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class B Duty Cycle Continuous Max Ambient Temp 60 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Air-Over Motor Mounting Type Cradle Base Motor Frame Material Steel
Mfr FB1076V1
| Item Reference | 4MA35 |
|---|---|
| Brand | CENTURY |
| Weight (lb) | 27.5 |
| Length (in) | 16.2 |
| Width (in) | 9 |
| Height (in) | 8.2 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |
