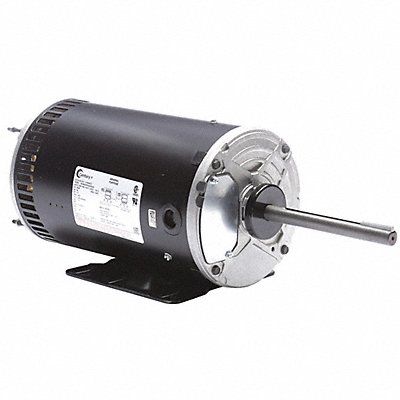

Condenser Fan Motor Three Phase Motor Design 3-Phase 1 1/2 HP Nameplate RPM 850 No of Speeds 1 Voltage 208-230/460V AC 190/380V AC 6.6-6.6/3.3 6.0/3.0 Full Load Amps 56HZ Frame Output Watts 1100 W 60 Hz Usable @ 208V Yes Usable @ 200V No Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class F Duty Cycle Continuous Max Ambient Temp 70 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Air-Over Motor Mounting Type Rigid Base
Mfr H1054AV1
| Item Reference | 429J45 |
|---|---|
| Brand | CENTURY |
| Weight (lb) | 48 |
| Length (in) | 22 |
| Width (in) | 12.4 |
| Height (in) | 12.5 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
