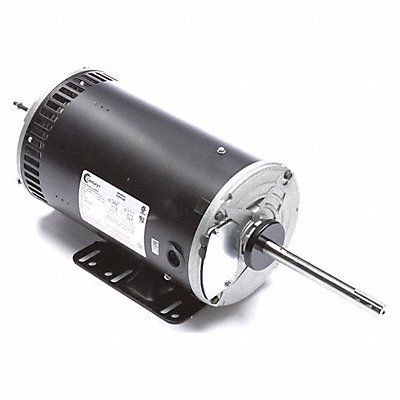

Condenser Fan Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 850 No of Speeds 1 Voltage 208-230/460V AC 5.4-5.1/2.7 Full Load Amps 56HZ Frame Output Watts 750 W 60 Hz Usable @ 208V Yes Usable @ 200V No Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class F Duty Cycle Continuous Max Ambient Temp 70 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Air-Over Motor Mounting Type Rigid Base Motor Frame Material Steel Inverter Rated Yes
Mfr H1053AV1
| Item Reference | 429J44 |
|---|---|
| Brand | CENTURY |
| Weight (lb) | 46.7 |
| Length (in) | 23 |
| Width (in) | 10 |
| Height (in) | 9.6 |
| Harmonization Code | 8501516040 |
| Country of Origin | Mexico |
