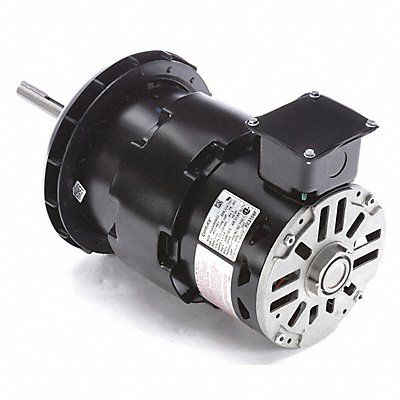

Condenser Fan Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 140 No of Speeds 1 Voltage 200-230/460V AC 5.6/2.8 Full Load Amps 48Y Frame Output Watts 750 W 60 Hz Usable @ 208V Yes Usable @ 200V Yes Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class F Duty Cycle Continuous Max Ambient Temp 70 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Air-Over Motor Mounting Type Band/Stud Motor Frame Material Steel
Mfr FC3106F
| Item Reference | 3RCT6 |
|---|---|
| Brand | CENTURY |
| Weight (lb) | 31.89 |
| Length (in) | 10.7 |
| Width (in) | 9.3 |
| Height (in) | 18.5 |
| Harmonization Code | 8501516040 |
| Country of Origin | Mexico |
