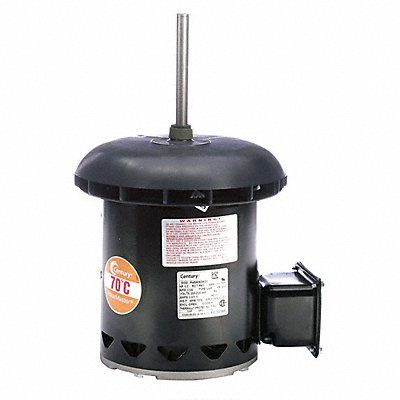

Condenser Fan Motor Three Phase Motor Design 3-Phase 1/2 HP Nameplate RPM 1 140 No of Speeds 1 Voltage 200-230/460V AC 3.0/1.50 Full Load Amps 48Y Frame Output Watts 370 W 60 Hz Usable @ 208V Yes Usable @ 200V Yes Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class F Duty Cycle Continuous Max Ambient Temp 70 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Air-Over Motor Mounting Type Band/Stud Motor Frame Material Steel
Mfr FC3056F
| Item Reference | 2XJK4 |
|---|---|
| Brand | CENTURY |
| Weight (lb) | 18.75 |
| Length (in) | 11 |
| Width (in) | 9.4 |
| Height (in) | 15.7 |
| Harmonization Code | 8501514040 |
| Country of Origin | Mexico |
