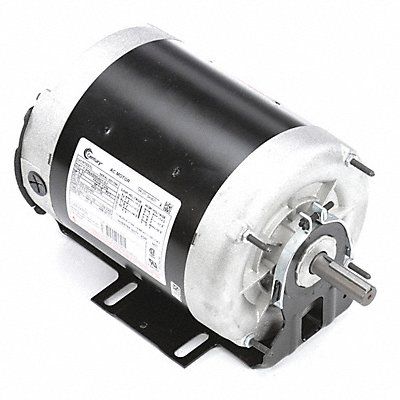

Belt Drive Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 200-230/460V AC 3.4-3.3/1.70 Full Load Amps 56 Frame Usable @ 208V Yes Usable @ 200V Yes 60 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class B Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Cradle Base Motor Mounting Position All Angle
Mfr H1031L
| Item Reference | 6PWA5 |
|---|---|
| Brand | CENTURY |
| Weight (lb) | 30.13 |
| Length (in) | 16.3 |
| Width (in) | 8.4 |
| Height (in) | 10.9 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
