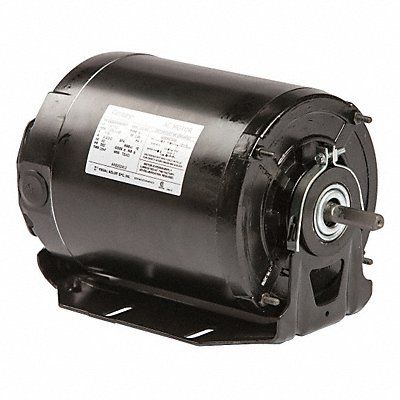

Belt Drive Motor Single Phase Motor Design Split-Phase 1/4 1/12 HP Nameplate RPM 1 725/1 140 No of Speeds 2 Voltage 115V AC 4.4/3.0 Full Load Amps 56Z Frame Usable @ 208V No Usable @ 200V No 60 Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class B Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Cradle Base Motor Mounting Position All Angle
Mfr ARB2024L2
| Item Reference | 5DVU0 |
|---|---|
| Brand | CENTURY |
| Weight (lb) | 23.7 |
| Length (in) | 14.2 |
| Width (in) | 8.2 |
| Height (in) | 9.3 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |
