| Item Reference | 3DGD1 |
|---|---|
| Brand | CENTURY |
| Weight (lb) | 47.25 |
| Length (in) | 18.9 |
| Width (in) | 12.2 |
| Height (in) | 10.8 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

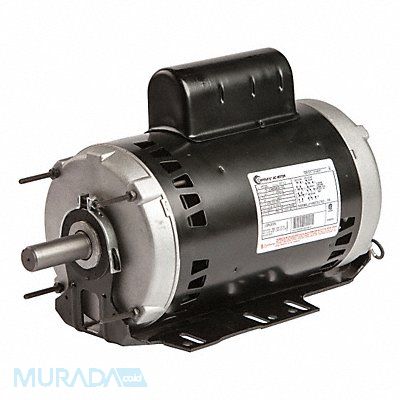

Belt Drive Motor Three Phase Motor Design 3-Phase 5 HP Nameplate RPM 3 450 No of Speeds 1 Voltage 208-230/460V AC 13.4-13.2/6.6 Full Load Amps 56HZ Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Motor Service Factor 1.15 Motor Thermal Protection Auto Ins. Class B Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Dripproof Motor Mounting Type Cradle Base Motor Mounting Position All Angle Motor Frame Material Steel
Mfr H1039L
