| Item Reference | 48UU01 |
|---|---|
| Brand | GENTEQ |
| Weight (lb) | 12.9 |
| Length (in) | 8.2 |
| Width (in) | 8.2 |
| Height (in) | 16.9 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |

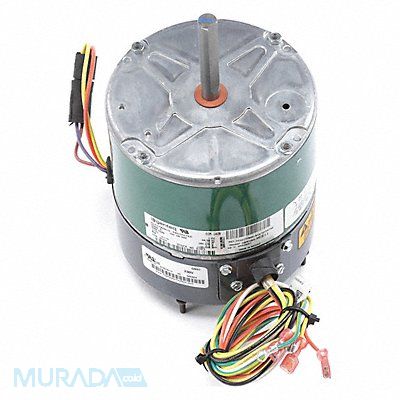

Condenser Fan Motor Single Phase Motor Design ECM 1/3 HP Nameplate RPM 1 100/850 No of Speeds 2 Voltage 208-230V AC 3.5 Full Load Amps 48 Frame 60 Hz Usable @ 208V Yes Usable @ 200V No Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class B Duty Cycle Continuous Max Ambient Temp 60 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Stud Motor Frame Material Steel Motor Mounting Position All Angle
Mfr 6303
