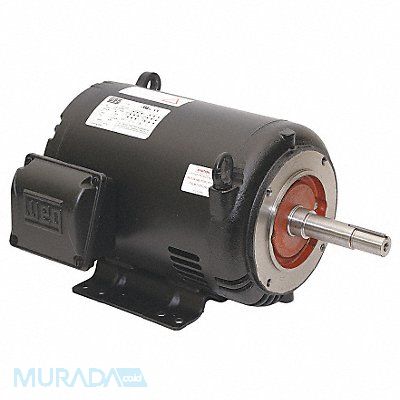

Close-Coupled Pump Motor Body Dia 10.4 in Bolt Circle Dia 7 1/4 in CC Number CC029A Conduit Box Location Exterior Conduit Box Position F1 Duty Cycle Continuous Frame 213/5JP Hz 60 Full Load Amps 38.0-34.4/17.2 Height 10 3/16 in HP 15 HP @ 50Hz 15 Ins. Class F Inverter Rated Yes Inverter Rating 1000 1 Length Less Shaft 14 5/8 in Manufacturers Warranty Length 3 yr Max Ambient Temp 40 Degrees C Motor Application Pump Motor Bearings Ball Motor Design 3-Phase
Mfr 01536OT3E215JPS
| Item Reference | 33HN84 |
|---|---|
| Brand | WEG |
| Weight (lb) | 153 |
| Length (in) | 27.5 |
| Width (in) | 17.3 |
| Height (in) | 13.8 |
| Harmonization Code | 8501524000 |
| Country of Origin | MULTIPLE |
