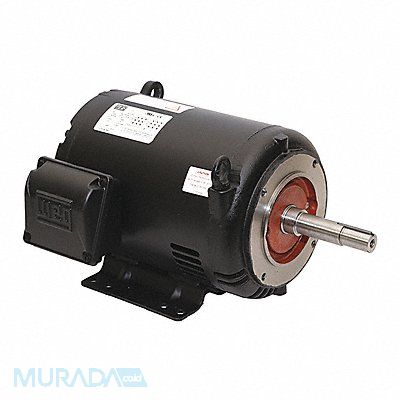

Close-Coupled Pump Motor Body Dia 10.4 in Bolt Circle Dia 7 1/4 in CC Number CC029A Conduit Box Location Exterior Conduit Box Position F1 Duty Cycle Continuous Frame 213/5JP Hz 60 Full Load Amps 26.5-24.0/12.0 Height 10 3/16 in HP 10 HP @ 50Hz 10 Ins. Class F Inverter Rated Yes Inverter Rating 1000 1 Length Less Shaft 13 13/16 in Manufacturers Warranty Length 3 yr Max Ambient Temp 40 Degrees C Motor Application Pump Motor Bearings Ball Motor Design 3-Phase
Mfr 01036OT3E213JPS
| Item Reference | 33HN78 |
|---|---|
| Brand | WEG |
| Weight (lb) | 121 |
| Length (in) | 27.3 |
| Width (in) | 17.5 |
| Height (in) | 14 |
| Harmonization Code | 8501524000 |
| Country of Origin | MULTIPLE |
