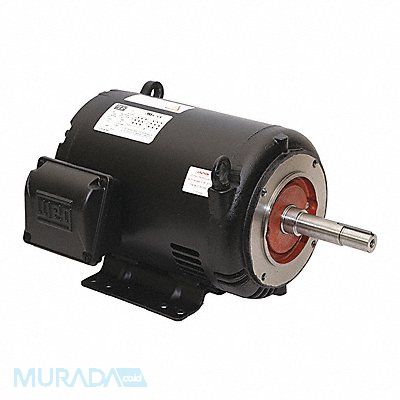

Close-Coupled Pump Motor Body Dia 8.4 in Bolt Circle Dia 5 5/8 in CC Number CC029A Conduit Box Location Exterior Conduit Box Position F1 Duty Cycle Continuous Frame 182/4JP Hz 60 Full Load Amps 8.5-7.7/3.8 Height 8 9/16 in HP 3 HP @ 50Hz 3 Ins. Class F Inverter Rated Yes Inverter Rating 1000 1 Length Less Shaft 12 3/8 in Manufacturers Warranty Length 3 yr Max Ambient Temp 40 Degrees C Motor Application Pump Motor Bearings Ball Motor Design 3-Phase
Mfr 00318OT3E182JPS
| Item Reference | 33HN40 |
|---|---|
| Brand | WEG |
| Weight (lb) | 82 |
| Length (in) | 23.5 |
| Width (in) | 16 |
| Height (in) | 14 |
| Harmonization Code | 8501524000 |
| Country of Origin | MULTIPLE |
