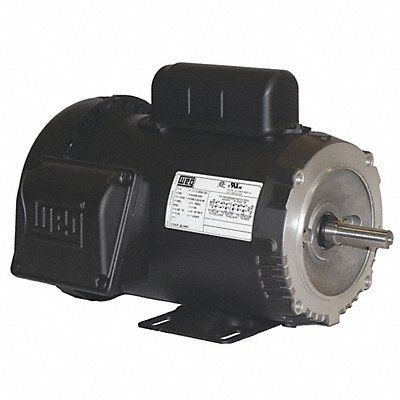

| Item Reference | 52XR31 |
|---|---|
| Brand | WEG |
| Weight (lb) | 33.5 |
| Length (in) | 17.1 |
| Width (in) | 11.9 |
| Height (in) | 11.2 |
| Harmonization Code | 8501406040 |
| Country of Origin | MULTIPLE |
General Purpose Motor Single Phase Motor Design Capacitor-Start/Run 1 HP Nameplate RPM 3 500 No of Speeds 1 Voltage 115/208-230V AC Full Load Amps 10.1/5.6-5.1 56C Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design None Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base
Mfr 00136ES1B56CS
