| Item Reference | 52XR25 |
|---|---|
| Brand | WEG |
| Weight (lb) | 26.5 |
| Length (in) | 17.5 |
| Width (in) | 11.8 |
| Height (in) | 9.8 |
| Harmonization Code | 8501514040 |
| Country of Origin | MULTIPLE |

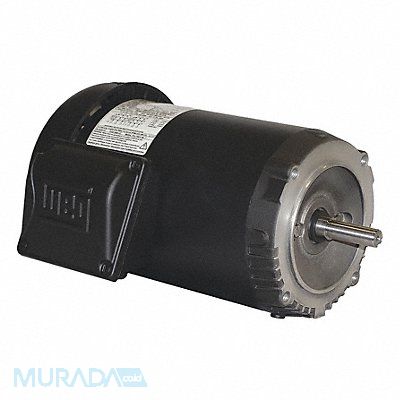

General Purpose Motor Three Phase Motor Design 3-Phase 1/2 HP Nameplate RPM 1 760 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 1.90-1.70/0.86 56C Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Face Motor Mounting Position All Angle
Mfr 5018ES3E56CFLS
