| Item Reference | 52XR15 |
|---|---|
| Brand | WEG |
| Weight (lb) | 23.8 |
| Length (in) | 13.6 |
| Width (in) | 8.6 |
| Height (in) | 9.9 |
| Harmonization Code | 8501514040 |
| Country of Origin | MULTIPLE |

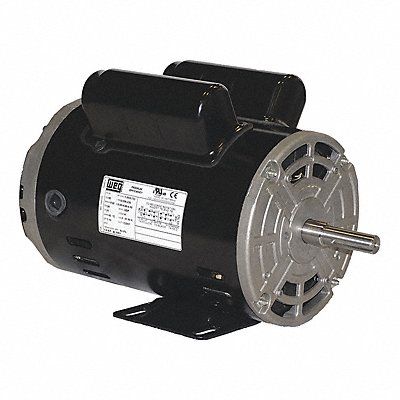

General Purpose Motor Single Phase Motor Design Capacitor-Start/Run 1/2 HP Nameplate RPM 1 730 No of Speeds 1 Voltage 115/208-230V AC Full Load Amps 4.9/3.0-2.4 48 Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design N Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position All Angle
