| Item Reference | 4HCG2 |
|---|---|
| Brand | WEG |
| Weight (lb) | 896 |
| Length (in) | 32.7 |
| Width (in) | 43.3 |
| Height (in) | 30.2 |
| Harmonization Code | 8501528040 |
| Country of Origin | MULTIPLE |

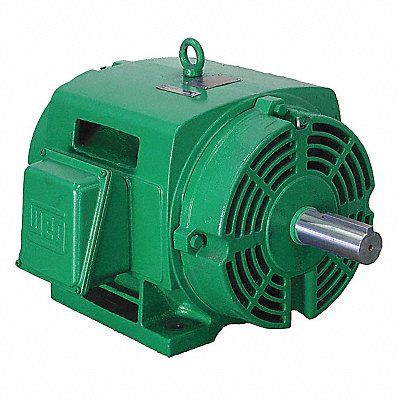

General Purpose Motor Three Phase Motor Design 3-Phase 75 HP Nameplate RPM 1 780 No of Speeds 1 Voltage 575V AC Full Load Amps 66.8 364/5T Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
