| Item Reference | 482V90 |
|---|---|
| Brand | WEG |
| Weight (lb) | 159 |
| Length (in) | 23.7 |
| Width (in) | 18.9 |
| Height (in) | 13.8 |
| Harmonization Code | 8501524000 |
| Country of Origin | Brazil |

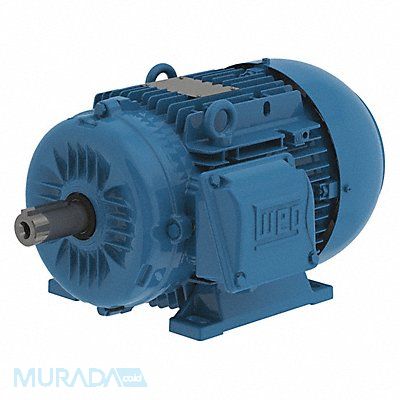

General Purpose Motor Three Phase Motor Design 3-Phase 10 HP Nameplate RPM 1 770 No of Speeds 1 Voltage 460V AC Full Load Amps 12.4 132M Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design N Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Frame Material Aluminum
Mfr 13984841
