| Item Reference | 19C666 |
|---|---|
| Brand | WEG |
| Weight (lb) | 415 |
| Length (in) | 32.3 |
| Width (in) | 22.5 |
| Height (in) | 17.8 |
| Harmonization Code | 8501528040 |
| Country of Origin | MULTIPLE |

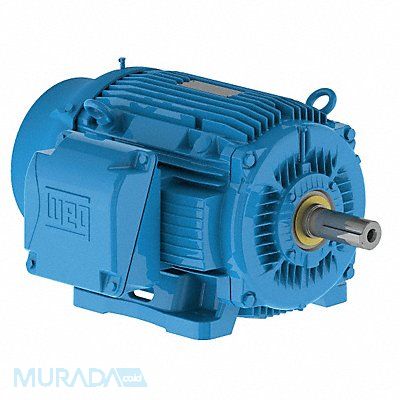

IEEE 841 Motor Three Phase Motor Design 3-Phase 25 HP Nameplate RPM 1 800 No of Speeds 1 Voltage 460V AC Full Load Amps 29.5 284T Frame Usable @ 208V No Usable @ 200V No Hz 60/50 Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 02518ST3QIERB284TW
