| Item Reference | 10G912 |
|---|---|
| Brand | WEG |
| Weight (lb) | 1765 |
| Length (in) | 44.16 |
| Width (in) | 31.29 |
| Height (in) | 29.4 |
| Harmonization Code | 8501528040 |
| Country of Origin | MULTIPLE |

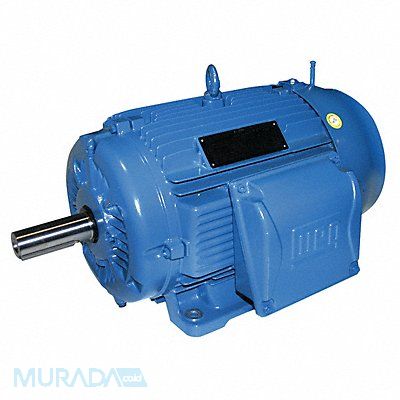

Metric Motor Three Phase Motor Design 3-Phase 100 HP Nameplate RPM 1 785 No of Speeds 1 Voltage 460V AC Full Load Amps 116.0 280S/M Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design N Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 07518ET3Y280SMW22
