| Item Reference | 10G909 |
|---|---|
| Brand | WEG |
| Weight (lb) | 1185 |
| Length (in) | 39.99 |
| Width (in) | 26.76 |
| Height (in) | 24.95 |
| Harmonization Code | 8501528040 |
| Country of Origin | MULTIPLE |

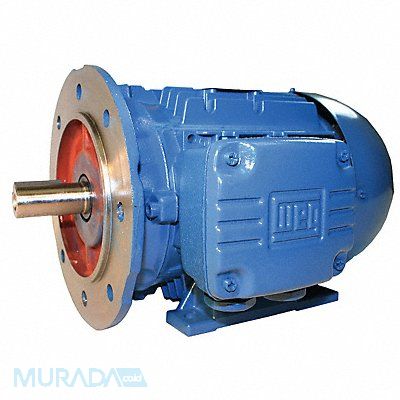

Metric Motor Three Phase Motor Design 3-Phase 75 HP Nameplate RPM 3 600 No of Speeds 1 Voltage 460V AC Full Load Amps 80.3 250S/M Frame Usable @ 208V No Usable @ 200V No Hz 60/50 Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design N Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Face/Base Motor Mounting Position Horizontal
Mfr 05536ET3Y250SMFFW2
