| Item Reference | 12N936 |
|---|---|
| Brand | WEG |
| Weight (lb) | 126 |
| Length (in) | 18.5 |
| Width (in) | 15 |
| Height (in) | 13 |
| Harmonization Code | 8501524000 |
| Country of Origin | MULTIPLE |

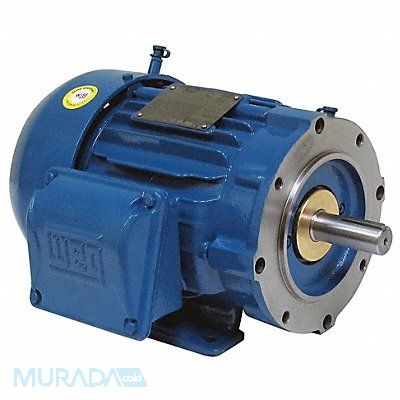

IEEE 841 Motor Three Phase Motor Design 3-Phase 5 HP Nameplate RPM 1 755 No of Speeds 1 Voltage 460V AC Full Load Amps 6.5 184TC Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design None Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type C-Face Base Motor Shaft Design Keyed
Mfr 00518ST3QIE184TCW22
