| Item Reference | 12N922 |
|---|---|
| Brand | WEG |
| Weight (lb) | 300 |
| Length (in) | 29.1 |
| Width (in) | 20.2 |
| Height (in) | 15.8 |
| Harmonization Code | 8501524000 |
| Country of Origin | MULTIPLE |

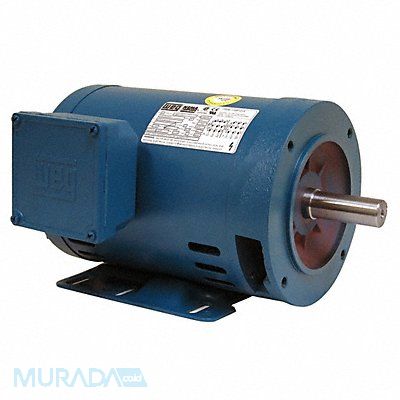

General Purpose Motor Three Phase Motor Design 3-Phase 20 HP Nameplate RPM 1 765 No of Speeds 1 Voltage 230/460V AC Full Load Amps 48.2/24.1 256TC Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design None Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Shaft Design Keyed
Mfr 02018OT3E256TCW40
