| Item Reference | 39J147 |
|---|---|
| Brand | WEG |
| Weight (lb) | 2508 |
| Length (in) | 55.1 |
| Width (in) | 42.2 |
| Height (in) | 37.3 |
| Harmonization Code | 8501534080 |
| Country of Origin | MULTIPLE |

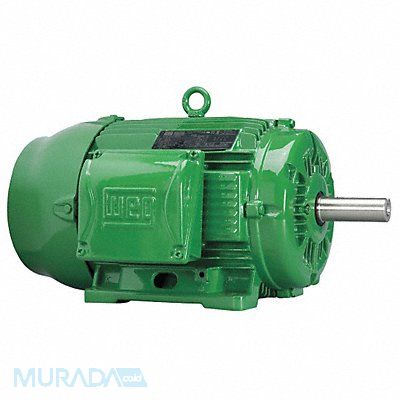

General Purpose Motor Three Phase Motor Design 3-Phase 200 HP Nameplate RPM 1 190 No of Speeds 1 Voltage 230/460V AC Full Load Amps 245.0 447/9T Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design A Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
