| Item Reference | 35JG13 |
|---|---|
| Brand | WEG |
| Weight (lb) | 32.4 |
| Length (in) | 15.5 |
| Width (in) | 12.5 |
| Height (in) | 8.9 |
| Harmonization Code | 8501514040 |
| Country of Origin | MULTIPLE |

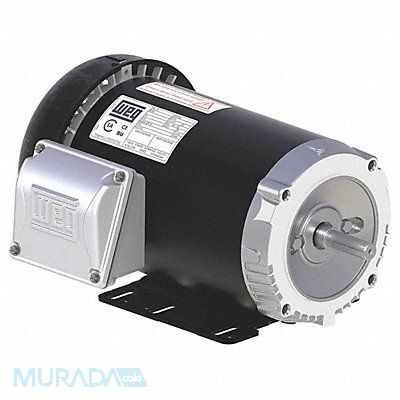

General Purpose Motor Three Phase Motor Design 3-Phase 3/4 HP Nameplate RPM 1 155 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 2.9-2.7/1.30 56C Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design A Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Face/Base
Mfr 7512ES3E56CS
