| Item Reference | 33HM98 |
|---|---|
| Brand | WEG |
| Weight (lb) | 196 |
| Length (in) | 20.42 |
| Width (in) | 16 |
| Height (in) | 13 |
| Harmonization Code | 8501524000 |
| Country of Origin | MULTIPLE |

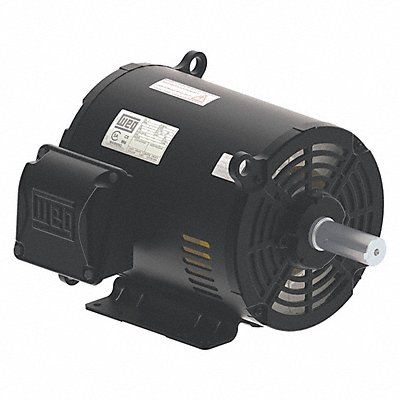

General Purpose Motor Three Phase Motor Design 3-Phase 20 HP Nameplate RPM 3 525 No of Speeds 1 Voltage 575V AC Full Load Amps 19.0 254/6T Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Inverter Rated Yes Motor Shaft Design Keyed
Mfr 02036OT3H254TS
