| Item Reference | 33HM95 |
|---|---|
| Brand | WEG |
| Weight (lb) | 204 |
| Length (in) | 27.6 |
| Width (in) | 19.1 |
| Height (in) | 16.3 |
| Harmonization Code | 8501524000 |
| Country of Origin | MULTIPLE |

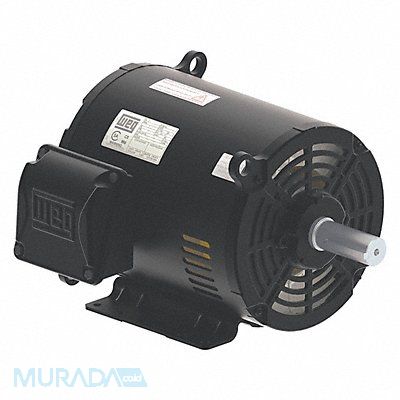

General Purpose Motor Three Phase Motor Design 3-Phase 15 HP Nameplate RPM 1 775 No of Speeds 1 Voltage 230/460V AC Full Load Amps 37.2/18.6 254/6T Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design B Motor Enclosure Design Open Dripproof Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Inverter Rated Yes Motor Shaft Design Keyed
