| Item Reference | 4GCJ8 |
|---|---|
| Brand | WEG |
| Weight (lb) | 178 |
| Length (in) | 30 |
| Width (in) | 14 |
| Height (in) | 11.4 |
| Harmonization Code | 8501524000 |
| Country of Origin | MULTIPLE |

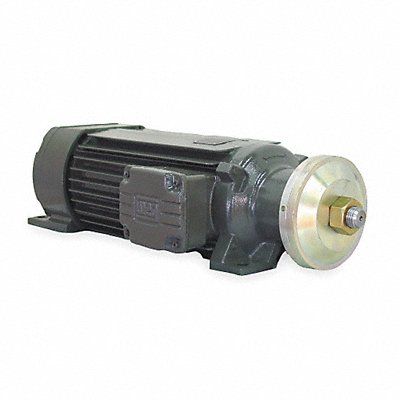

Saw Arbor Motor Three Phase Motor Design 3-Phase 10 HP Nameplate RPM 3 600 No of Speeds 1 575V AC Voltage Full Load Amps 9.8 90L Frame Usable @ 208V No Usable @ 200V No 60 Hz Motor Service Factor 1 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Motor Shaft Rotation CWSE Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Rigid Base Motor Frame Material Cast Iron Shaft Dia 1 3/16 in Shaft Length 2 1/2 in
Mfr 01036ES3HSA90LL
