| Item Reference | 4YPX6 |
|---|---|
| Brand | WEG |
| Weight (lb) | 1456 |
| Length (in) | 44.49 |
| Width (in) | 32.36 |
| Height (in) | 29.61 |
| Harmonization Code | 8501534080 |
| Country of Origin | MULTIPLE |

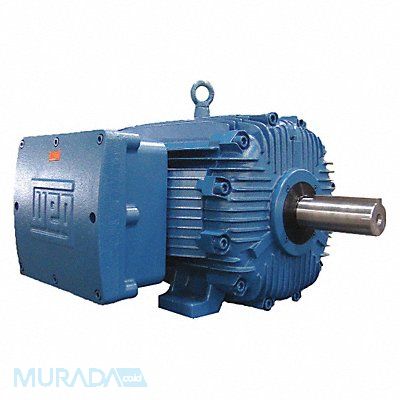

Hazardous Location Motor Three Phase Motor Design 3-Phase 100 HP Nameplate RPM 3 550 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 220.0/110.0 405TS Frame Usable @ 208V Yes Usable @ 200V No Hz 60 Max Ambient Temp 104 Degrees F Motor Service Factor 1.15 Motor Thermal Protection T-Stat Ins. Class F Hazardous Location Class 1 C D / 2 F G Temp Code T3C Motor Enclosure Design Totally Enclosed Fan-Cooled Duty Cycle Continuous Motor Mounting Type Rigid Base
Mfr 10036XT3E405TS
