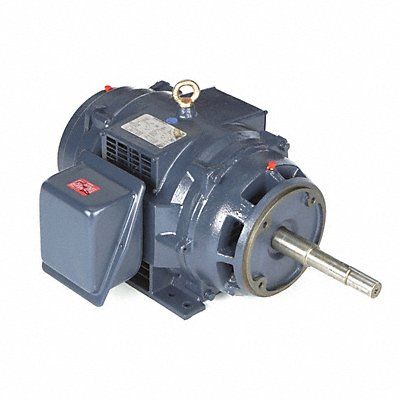

Close-Coupled Pump Motor Body Dia 11.8 in Bolt Circle Dia 7 1/4 in CC Number CC003A Conduit Box Location Exterior Conduit Box Position F1 F2 Duty Cycle Continuous Frame 256JP Hz 60 Full Load Amps 59.5/29.7 Height 13 1/2 in HP 25 Ins. Class F Inverter Rated Yes Inverter Rating 10 1 Variable Torque 2 1 Constant Torque Length Less Shaft 20 3/4 in Max Ambient Temp 40 Degrees C Motor Application Pump Motor Bearings Ball Motor Design 3-Phase
Mfr 256TTDBD6012
| Item Reference | 32UR12 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 350 |
| Length (in) | 31.25 |
| Width (in) | 22.25 |
| Height (in) | 18 |
| Harmonization Code | 8501528040 |
| Country of Origin | Mexico |
