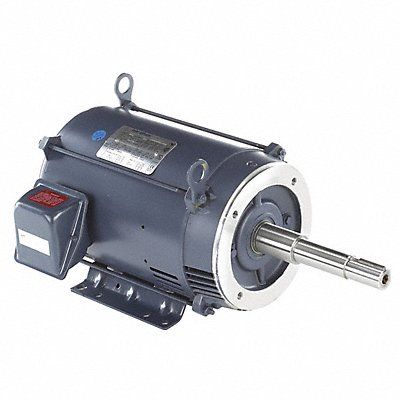

Close-Coupled Pump Motor Body Dia 9.5 in Bolt Circle Dia 7 1/4 in CC Number CC003A Conduit Box Location Exterior Conduit Box Position F1 F2 Duty Cycle Continuous Frame 213JP Hz 60 Full Load Amps 24.2/12.1 Height 11 in HP 10 Ins. Class F Inverter Rated Yes Inverter Rating 10 1 Variable Torque 2 1 Constant Torque Length Less Shaft 15 in Max Ambient Temp 40 Degrees C Motor Application Pump Motor Bearings Ball Motor Design 3-Phase
Mfr 213TTDBD6012
| Item Reference | 32UP99 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 140 |
| Length (in) | 27 |
| Width (in) | 20.5 |
| Height (in) | 18 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
