| Item Reference | 32UP97 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 95 |
| Length (in) | 27 |
| Width (in) | 20.5 |
| Height (in) | 18 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

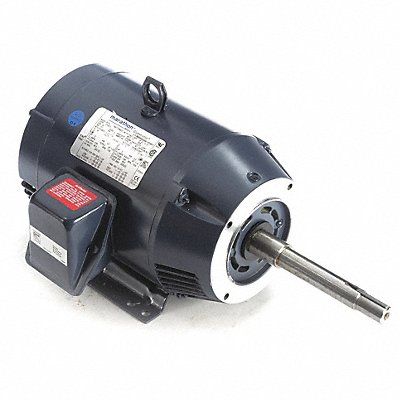

Close-Coupled Pump Motor Body Dia 8.4 in Bolt Circle Dia 5 7/8 in CC Number CC003A Conduit Box Location Exterior Conduit Box Position F1 F2 Duty Cycle Continuous Frame 184JP Hz 60 Full Load Amps 13.2/6.6 Height 9 13/16 in HP 5 Ins. Class F Inverter Rated Yes Inverter Rating 10 1 Variable Torque 2 1 Constant Torque Length Less Shaft 11 3/8 in Max Ambient Temp 40 Degrees C Motor Application Pump Motor Bearings Ball Motor Design 3-Phase
Mfr 184TTDBD6037
