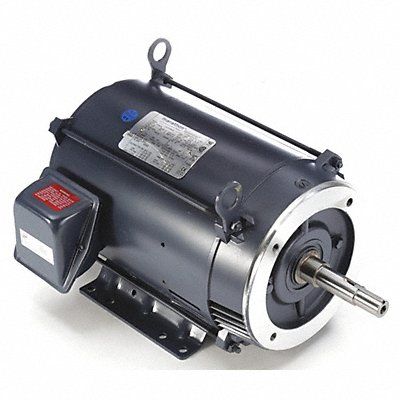

Close-Coupled Pump Motor Body Dia 9.5 in Bolt Circle Dia 7 1/4 in CC Number CC003A Conduit Box Location Exterior Conduit Box Position F1 F2 Duty Cycle Continuous Frame 213JM Hz 60 Full Load Amps 19.8/9.9 Height 11 in HP 7 1/2 Ins. Class F Inverter Rated Yes Inverter Rating 10 1 Variable Torque 2 1 Constant Torque Length Less Shaft 15 in Max Ambient Temp 40 Degrees C Motor Application Pump Motor Bearings Ball Motor Design 3-Phase
Mfr 213TTDBD6032
| Item Reference | 26ZY04 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 137 |
| Length (in) | 22.8 |
| Width (in) | 17.3 |
| Height (in) | 15 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
