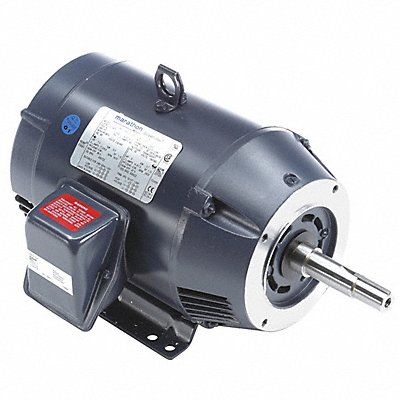

Close-Coupled Pump Motor Body Dia 8.4 in Bolt Circle Dia 5 7/8 in CC Number CC003A Conduit Box Location Exterior Conduit Box Position F1 F2 Duty Cycle Continuous Frame 184JM Hz 60 Full Load Amps 18.4/9.2 Height 9 13/16 in HP 7 1/2 Ins. Class F Inverter Rated Yes Inverter Rating 10 1 Variable Torque 2 1 Constant Torque Length Less Shaft 11 3/8 in Max Ambient Temp 40 Degrees C Motor Application Pump Motor Bearings Ball Motor Design 3-Phase
Mfr 184TTDBD6007
| Item Reference | 26ZX97 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 82 |
| Length (in) | 19 |
| Width (in) | 13.6 |
| Height (in) | 17 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
