| Item Reference | 49WN27 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 440 |
| Length (in) | 35 |
| Width (in) | 26 |
| Height (in) | 24.33 |
| Harmonization Code | 8501528040 |
| Country of Origin | Mexico |

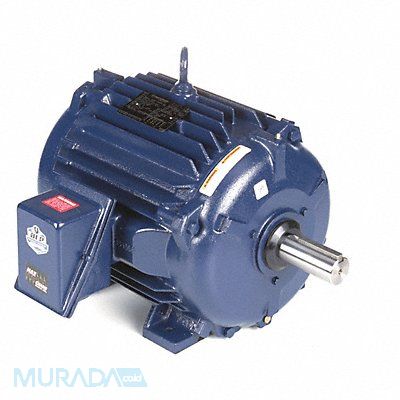

Cooling Tower Motor Three Phase Motor Design 3-Phase 25 HP Nameplate RPM 1 775 No of Speeds 1 Voltage 230/460V AC 62.0/31.0 Full Load Amps 284TV Frame 60 Hz Usable @ 208V No Usable @ 200V No Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Max Ambient Temp 40 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Air-Over Motor Mounting Type Rigid Base Motor Frame Material Cast Iron Motor Mounting Position All Angle
