| Item Reference | 490T65 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 45.4 |
| Length (in) | 20 |
| Width (in) | 10.8 |
| Height (in) | 9.2 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

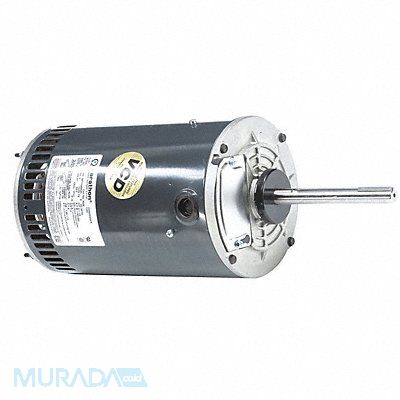

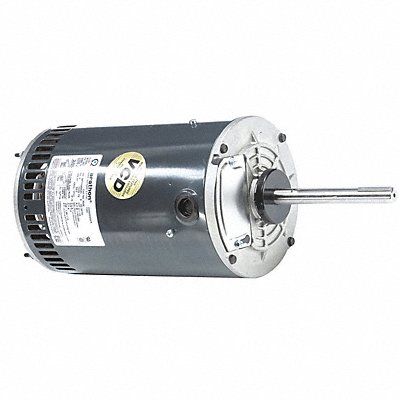

Condenser Fan Motor Three Phase Motor Design 3-Phase 2 HP Nameplate RPM 1 140 No of Speeds 1 Voltage 200-230/460V AC 7.2-6.8/3.4 Full Load Amps 56Y Frame Output Watts 1500 W 60/50 Hz Usable @ 208V Yes Usable @ 200V Yes Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class H Duty Cycle Continuous Max Ambient Temp 70 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Air-Over Motor Mounting Type Band/Stud Motor Frame Material Steel
