| Item Reference | 490T64 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 35.3 |
| Length (in) | 16.9 |
| Width (in) | 8 |
| Height (in) | 8 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

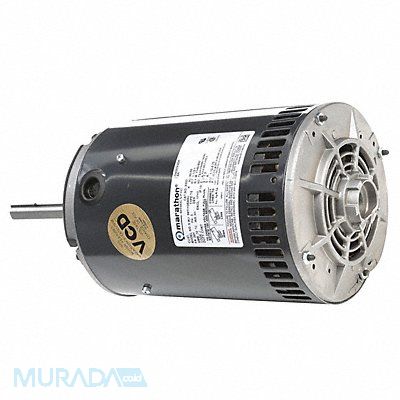

Condenser Fan Motor Three Phase Motor Design 3-Phase 1 1/2 HP Nameplate RPM 1 140 No of Speeds 1 Voltage 200-230/460V AC 5.5-5.4/2.7 Full Load Amps 56Y Frame Output Watts 1100 W 60/50 Hz Usable @ 208V Yes Usable @ 200V Yes Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class H Duty Cycle Continuous Max Ambient Temp 70 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Air-Over Motor Mounting Type Band/Stud Motor Frame Material Steel
Mfr 056T11O5303
