| Item Reference | 490T62 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 27.6 |
| Length (in) | 16.6 |
| Width (in) | 7.9 |
| Height (in) | 8.3 |
| Harmonization Code | 8501516040 |
| Country of Origin | Mexico |

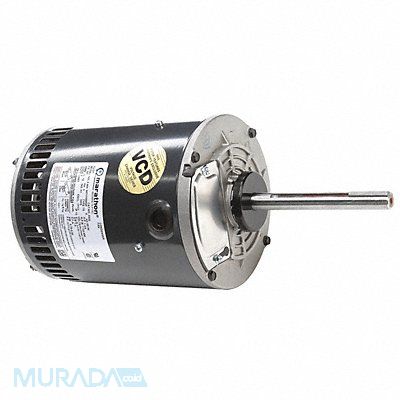

Condenser Fan Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 140 No of Speeds 1 Voltage 200-230/460V AC 4.2-4.0/2.1 Full Load Amps 56Y Frame Output Watts 750 W 60/50 Hz Usable @ 208V Yes Usable @ 200V Yes Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class H Duty Cycle Continuous Max Ambient Temp 70 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Air-Over Motor Mounting Type Band/Stud Motor Frame Material Steel
Mfr 056T11O5302
