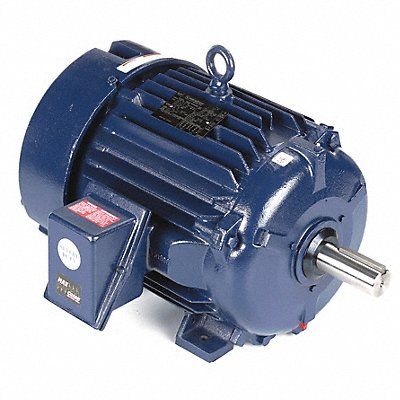

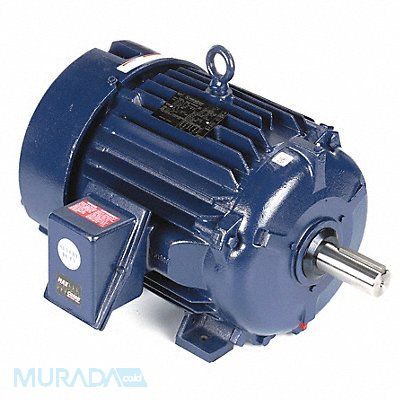

MARATHON MOTORS CT Motor 3-Ph TEFC 25 HP 230/460V, 19YR45

Be the first to review this product
backorder
item
18JKK3846
Mfr 284TTFNA16832
Brand
MARATHON MOTORS
Rp. 135,633,000.00
Add to Compare
item
Severe Duty Motor Three Phase Motor Design 3-Phase 25 HP Nameplate RPM 1 772 No of Speeds 1 Voltage 230/460V AC 62.0/31.0 Full Load Amps 284T Frame Output Watts 18700 W 60/50 Hz Usable @ 208V No Usable @ 200V No Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Duty Cycle Continuous Max Ambient Temp 40 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Frame Material Cast Iron
Mfr 284TTFNA16832
More Information
Item Reference19YR45
BrandMARATHON MOTORS
Weight (lb)468
Length (in)35
Width (in)26
Height (in)24.51
Harmonization Code8501528040
Country of OriginUnited States
Severe Duty Motor Three Phase Motor Design 3-Phase 25 HP Nameplate RPM 1 772 No of Speeds 1 Voltage 230/460V AC 62.0/31.0 Full Load Amps 284T Frame Output Watts 18700 W 60/50 Hz Usable @ 208V No Usable @ 200V No Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Duty Cycle Continuous Max Ambient Temp 40 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base Motor Frame Material Cast Iron
Mfr 284TTFNA16832
