| Item Reference | 19YR32 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 468 |
| Length (in) | 35 |
| Width (in) | 26 |
| Height (in) | 24.51 |
| Harmonization Code | 8501528040 |
| Country of Origin | United States |

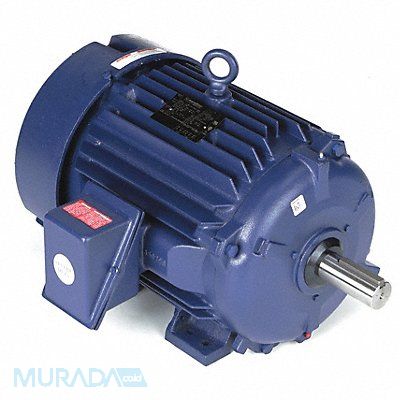

Definite Purpose Motor Three Phase Motor Design 3-Phase 25 6 1/4 HP Nameplate RPM 1 775/880 No of Speeds 2 Voltage 460V AC 31.0/11.0 Full Load Amps 286T Frame Output Watts 18700 W 60 Hz Usable @ 208V No Usable @ 200V No Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class F Duty Cycle Continuous Max Ambient Temp 40 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Rigid Base
Mfr 286TTFNA7260
