| Item Reference | 45CF09 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 18.1 |
| Length (in) | 13.3 |
| Width (in) | 7.1 |
| Height (in) | 7.4 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |

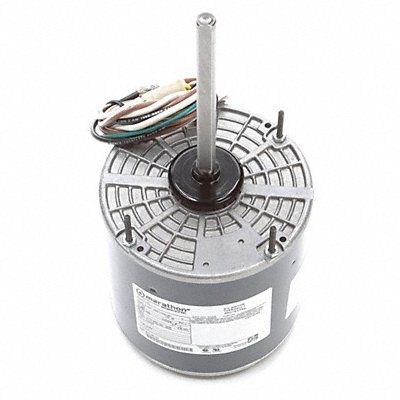

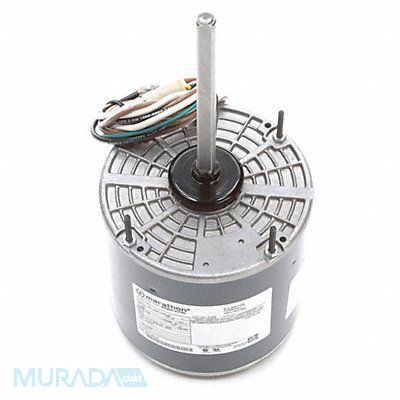

Condenser Fan Motor Single Phase Motor Design Permanent Split Capacitor 3/4 HP Nameplate RPM 1 075 No of Speeds 1 Voltage 460V AC 2.5 Full Load Amps 48Y Frame Output Watts 560 W 60 Hz Usable @ 208V No Usable @ 200V No Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class B Duty Cycle Continuous Max Ambient Temp 40 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Air-Over Motor Mounting Type Stud Motor Frame Material Steel
Mfr 048A11O2016
