| Item Reference | 39P318 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 22 |
| Length (in) | 13.94 |
| Width (in) | 8 |
| Height (in) | 8.75 |
| Harmonization Code | 8501514040 |
| Country of Origin | Mexico |

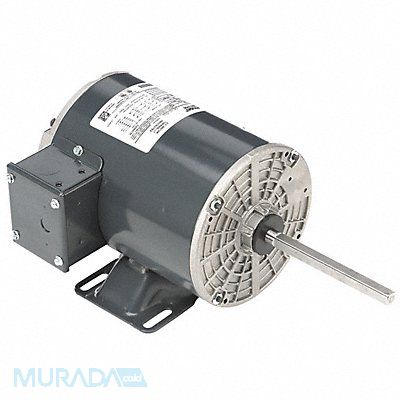

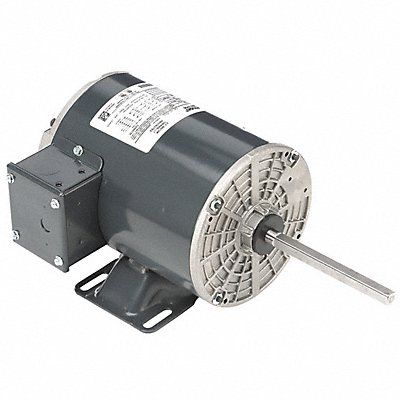

Condenser Fan Motor Three Phase Motor Design 3-Phase 1/3 HP Nameplate RPM 1 140 No of Speeds 1 Voltage 208-230/460V AC 1.80-1.80/0.90 Full Load Amps 56Z Frame Output Watts 250 W 60/50 Hz Usable @ 208V Yes Usable @ 200V No Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class B Duty Cycle Continuous Max Ambient Temp 60 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Air-Over Motor Mounting Type Rigid Base Motor Frame Material Steel
Mfr 056T11O11001
