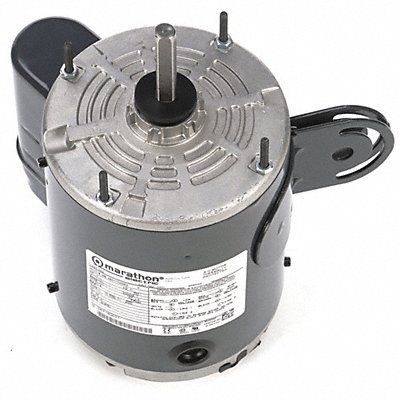

MARATHON MOTORS Pdstl Fan Mtr PSC TENV 1/4HP 1625rpm 48Z, 32PF71

backorder
item
18JKK3810
Mfr 048A17T2005
Rp. 7,863,250.00
item
Pedestal Fan Motor Single Phase Motor Design Permanent Split Capacitor 1/4 HP Nameplate RPM 1 625 No of Speeds 1 Voltage 115/230V AC 3.6/1.80 Full Load Amps 48Z Frame Output Watts 190 W 60 Hz Usable @ 208V No Usable @ 200V No Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class B Duty Cycle Continuous Max Ambient Temp 40 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Nonventilated Motor Mounting Type Yoke
Mfr 048A17T2005
More Information
Item Reference32PF71
BrandMARATHON MOTORS
Weight (lb)20.65
Length (in)16
Width (in)12.9
Height (in)10.6
Harmonization Code8501404040
Country of OriginMexico
Pedestal Fan Motor Single Phase Motor Design Permanent Split Capacitor 1/4 HP Nameplate RPM 1 625 No of Speeds 1 Voltage 115/230V AC 3.6/1.80 Full Load Amps 48Z Frame Output Watts 190 W 60 Hz Usable @ 208V No Usable @ 200V No Motor Service Factor 1 Motor Thermal Protection Auto Ins. Class B Duty Cycle Continuous Max Ambient Temp 40 Degrees C Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Nonventilated Motor Mounting Type Yoke
Mfr 048A17T2005
