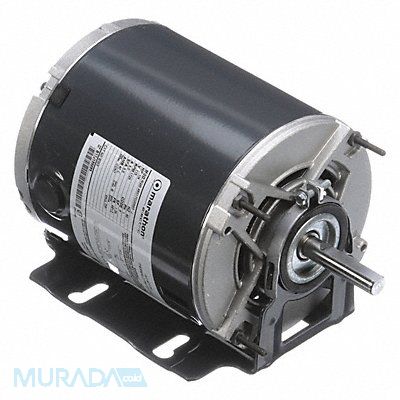

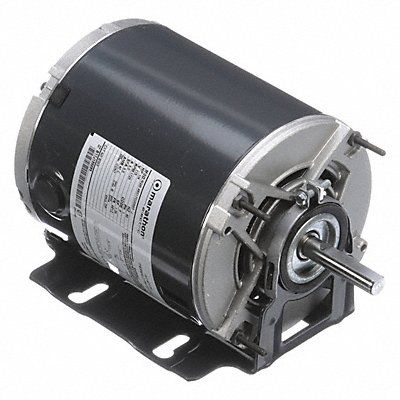

| Item Reference | 490T80 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 14.2 |
| Length (in) | 13 |
| Width (in) | 7.3 |
| Height (in) | 8.5 |
| Harmonization Code | 8501404040 |
| Country of Origin | Mexico |
Belt Drive Motor Single Phase Motor Design Split-Phase 1/4 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 115V AC 5.0 Full Load Amps 48YZ Frame Usable @ 208V No Usable @ 200V No 60 Hz Motor Service Factor 1.35 Motor Thermal Protection Auto Ins. Class B Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Dripproof Motor Mounting Type Ring/Stud Motor Mounting Position Horizontal Motor Frame Material Steel
Mfr 048S17D2055
