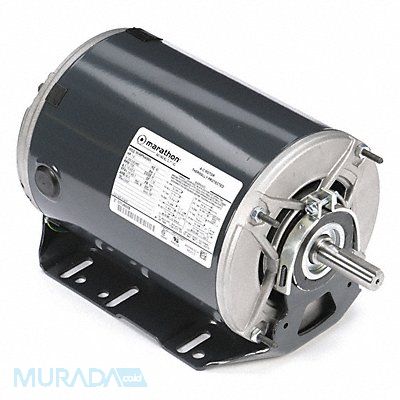

MARATHON MOTORS Motor 1 1/2 HP 1725 rpm 56H 208-230/460V, 490T76

backorder
item
18JKK3451
Mfr 5K49PN4088X
Rp. 11,909,000.00
item
Belt Drive Motor Three Phase Motor Design 3-Phase 1 1/2 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 208-230/460V AC 5.2-5.1/2.6 Full Load Amps 56H Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class B Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Dripproof Motor Mounting Type Cradle Base Motor Mounting Position Horizontal Motor Frame Material Steel
Mfr 5K49PN4088X
More Information
Item Reference490T76
BrandMARATHON MOTORS
Weight (lb)32.8
Length (in)15.7
Width (in)10.1
Height (in)8.2
Harmonization Code8501524000
Country of OriginMexico
Belt Drive Motor Three Phase Motor Design 3-Phase 1 1/2 HP Nameplate RPM 1 725 No of Speeds 1 Voltage 208-230/460V AC 5.2-5.1/2.6 Full Load Amps 56H Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class B Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Dripproof Motor Mounting Type Cradle Base Motor Mounting Position Horizontal Motor Frame Material Steel
Mfr 5K49PN4088X
