| Item Reference | 19RW49 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 175 |
| Length (in) | 22.5 |
| Width (in) | 16.81 |
| Height (in) | 14 |
| Harmonization Code | 8501524000 |
| Country of Origin | United States |

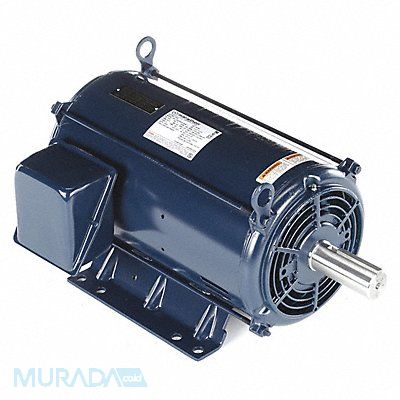

Belt Drive Motor Three Phase Motor Design 3-Phase 7 1/2 3 1/3 HP Nameplate RPM 1 770/1 180 No of Speeds 2 Voltage 200-230V AC 20.8/11.0 Full Load Amps 254T Frame Usable @ 208V Yes Usable @ 200V Yes 60 Hz Motor Service Factor 1.15 Motor Thermal Protection None Ins. Class B Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Open Dripproof Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
Mfr 254TTDX7278
