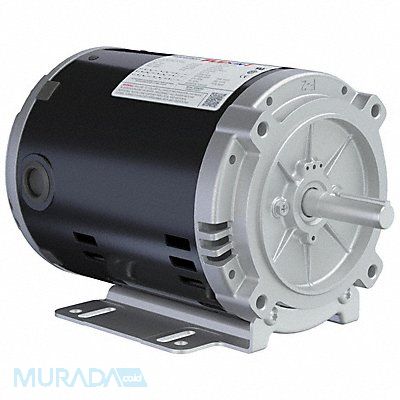

General Purpose Motors Three Phase Motor Design 3-Phase 1/2 HP Nameplate RPM 3 450 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 2.0-2.0/1.0 56C Frame Usable @ 208V Yes Hz 60 Motor Service Factor 1.25 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design F Motor Enclosure Design Open Dripproof Motor Shaft Rotation CCW Motor Mounting Type Universal Motor Mounting Position Horizontal Inverter Rated Yes
Mfr 056T34D15644
| Item Reference | 801VA3 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 22.1 |
| Length (in) | 16.3 |
| Width (in) | 10.6 |
| Height (in) | 8.7 |
| Harmonization Code | 8501406040 |
| Country of Origin | Mexico |
