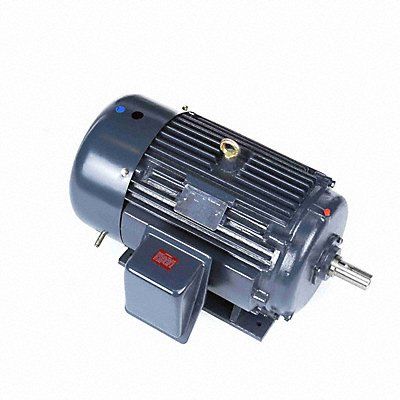

General Purpose Motor Three Phase Motor Design 3-Phase 30 HP Nameplate RPM 1 770 No of Speeds 1 Voltage 230/460V AC Full Load Amps 71.0/35.5 286TS Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CCWSE Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Inverter Rated Yes
Mfr 286TSTFCD6026
| Item Reference | 61VA67 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 410 |
| Length (in) | 31.77 |
| Width (in) | 28.03 |
| Height (in) | 28.14 |
| Harmonization Code | 8501528040 |
| Country of Origin | Mexico |
