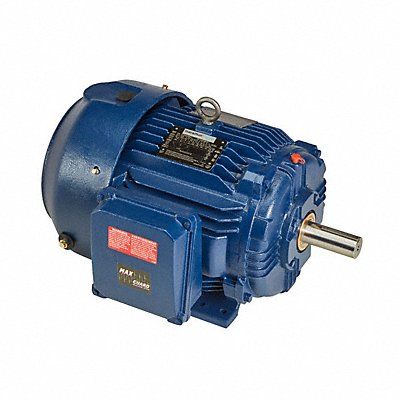

IEEE 841 Motor Three Phase Motor Design 3-Phase 15 HP Nameplate RPM 875 No of Speeds 1 Voltage 460V AC Full Load Amps 20.0 286T Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 104 Degrees F Motor Thermal Protection None Duty Cycle Continuous Ins. Class H NEMA Design B Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Inverter Rated Yes
Mfr 286THFCD19101
| Item Reference | 61KJ09 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 479 |
| Length (in) | 32 |
| Width (in) | 27 |
| Height (in) | 24 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |
