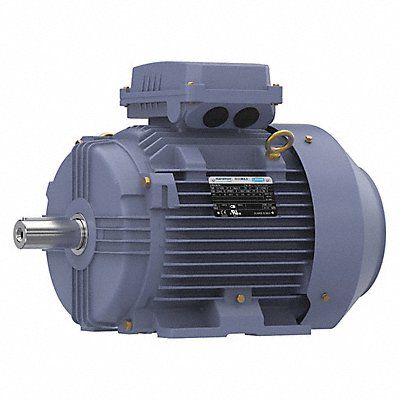

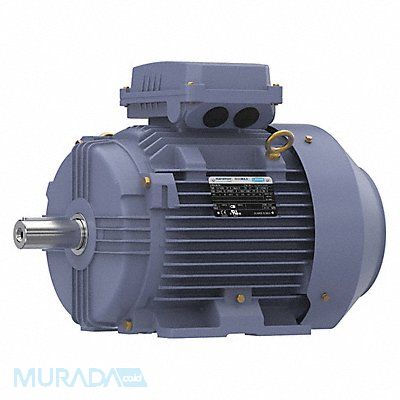

Metric Motor Three Phase Motor Design 3-Phase 10 HP Nameplate RPM 1 775 No of Speeds 1 Voltage 575V AC Full Load Amps 10.2 132M Frame Usable @ 208V No Usable @ 200V No Hz 60 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F NEMA Design N Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal Inverter Rated Yes
Mfr TCA7P52AP211GAA009
| Item Reference | 55AY85 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 216 |
| Length (in) | 21.65 |
| Width (in) | 13 |
| Height (in) | 17.52 |
| Harmonization Code | 8501524000 |
| Country of Origin | India |
