| Item Reference | 482P79 |
|---|---|
| Brand | MARATHON MOTORS |
| Weight (lb) | 131 |
| Length (in) | 22.7 |
| Width (in) | 17.2 |
| Height (in) | 15.7 |
| Harmonization Code | 8501524000 |
| Country of Origin | Mexico |

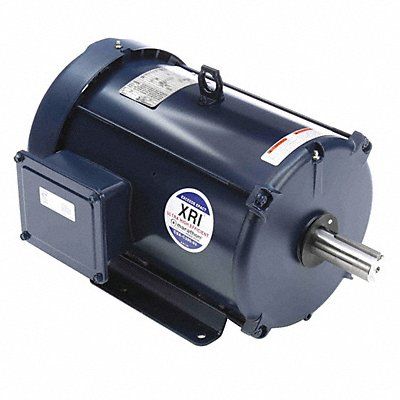

General Purpose Motor Three Phase Motor Design 3-Phase 7 1/2 HP Nameplate RPM 1 765 No of Speeds 1 Voltage 208-230/460V AC Full Load Amps 20.8-19.6/9.8 213T Frame Usable @ 208V Yes Usable @ 200V No Hz 60/50 Motor Service Factor 1.15 Max Ambient Temp 40 Degrees C Motor Thermal Protection None Duty Cycle Continuous Ins. Class F Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Shaft Rotation CW/CCW Motor Mounting Type Rigid Base Motor Mounting Position Horizontal
